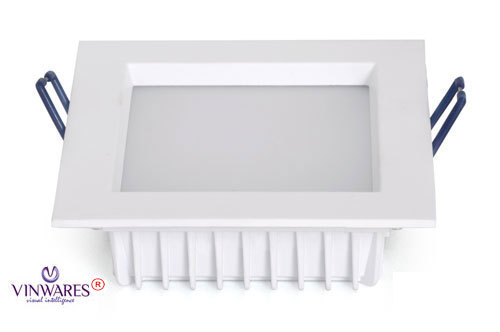

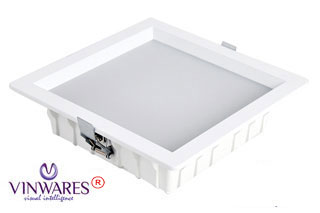

Square Down Lights
Technical Specifications (Square Down Light)
Material : Aluminum Casting with PC Diffuser
IP Level : IP 20
Driver : Philips Driver / Mean-Well Driver/ Equivalent
Colour Available : CW, NW, WW
CCT : 3000-6500 k
LED : Cree LED / Sen Nikko or Equivalent
Application (Square Down Light)
Product Specifications
| Product Name | Product Code | Wattage | Annual Power Consumption |
Maximum Lumens | Overall Dimensions in mm | Cutout Dimension |
|
|---|---|---|---|---|---|---|---|
| Length /Dia | Height | ||||||
| 08 Watt DL | VW DL 001 s | 08 Watts | 23 KW | 800 lm | 85 | 35 | 63x63 Sq |
| 15 Watt DL | VW DL 002 s | 15 Watts | 49 KW | 1500 lm | 142 | 44 | 120x120 Sq |
| 22 Watt DL | VM DL 003 s | 22 Watts | 65 KW | 2200 lm | 182 | 46 | 160x160 Sq |
