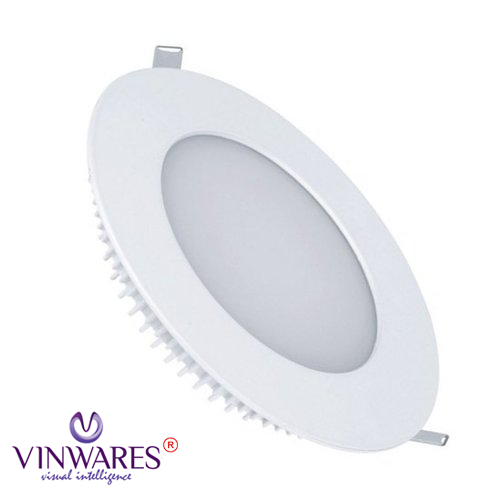

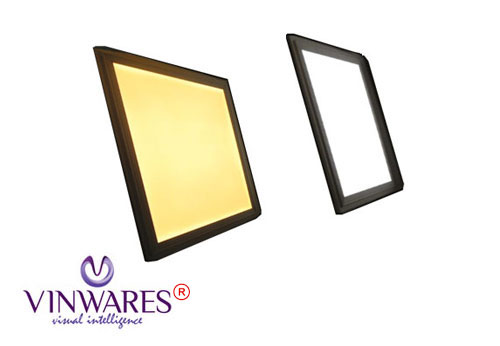

Round & Square Backlit Panel Light
Technical Specifications (Round & Square Backlit Panel Light)
Material : Aluminum Casting with PC Diffuser
IP Level : IP 20
Driver : Philips Driver / Mean-Well Driver/ Equivalent
Colour Available : CW, NW, WW
CCT : 3000-6500 k
LED : Cree LED / Sen Nikko or Equivalent
Application (Round & Square Backlit Panel Light)
Product Specifications
| Product Name | Product Code | Wattage | Annual Power Consumption |
Maximum Lumens | Overall Dimensions in mm | Cutout Dimension |
|
|---|---|---|---|---|---|---|---|
| Length /Dia | Height | ||||||
| 09 Watt R BLPL | VW BLPL 001 R | 09 Watts | 27 KW | 900 lm | 106 | 40 | 96 Dia |
| 16 Watt R BLPL | VW BLPL 002 R | 16 Watts | 48 KW | 1600 lm | 178 | 30 | 163 Dia |
| 09 Watt S BLPL | VM BLPL 003 S | 09 Watts | 27 KW | 900 lm | 110 | 40 | 100x100 Sq |
| 12 Watt S BLPL | VM BLPL 004 S | 12 Watts | 35 KW | 1200 lm | 150 | 40 | 134x134 Sq |
| 16 Watt S BLPL | VM BLPL 005 S | 16 Watts | 48 KW | 1600 lm | 180 | 38 | 164x164 Sq |
| 22 Watt S BLPL | VM BLPL 006 S | 22 Watts | 66 KW | 2200 lm | 180 | 38 | 164x164 Sq |
